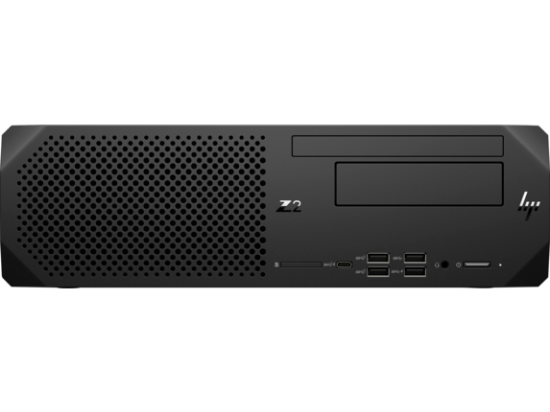

HP Z2 SFF G5 Workstation i3-10100

HP IDS Z2 TWR G5 WKS
Single Unit (Small Form Factor) HP WKS Packaging
HP Z2 E SFF G5 260W IDS Chassis
HP Linux-ready
Operating System Load to M.2
Intel Core i3 10100 3.6GHz 2666MHz 4C 65W CPU
Chipset: Intel W480 chipset
8GB (1 x 8GB) DDR4-3200 UDIMM Memory
Intel UHD Graphics P630 (2 x DisplayPort 1.4)
256GB M.2 2280 PCIe NVMe TLC SSD
LAN: Integrated Intel I219-LM PCIe GbE
Expansion slots: 1 PCIe 3 x4; 2 PCIe 3 x1; 1 PCIe 3 x16; 1 M.2 2230 PCIe 3 x1; 2 M.2 2280 PCIe 3 x4
USB Business Slim Wired Keyboard
HP Optical USB Wired Mouse
HP Z Central Remote Boost 2020 Software for Z Workstations
HP Z2 SFF G5 Country Kit
Warranty: 3/3/3 (material/labor/onsite)

Manufacturer: HP Inc.

Be the first to review this product

11,500,000 ₫ (Giá chưa bao gồm VAT)

Qty:

Mô tả
Thuộc tính sản phẩm
Đánh giá

HP Data Sheet

AMS WS - HP Z2 Small Form Factor G5 Workstation Datasheet EN

Operating system

Windows 10 Pro - HP recommends Windows 10 Pro for business

Windows 10 Pro for Workstations - HP recommends Windows 10 Pro for business

Windows 10 Home

Ubuntu Linux 20.04

Linux-ready

Processor

Intel® Core™ i3-10100 Processor (3.6 GHz, up to 4.3 GHz w/Boost, 6 MB cache, 4 core, 65W) + Intel® UHD Graphics 630

Intel® Core™ i3-10300 Processor (3.7 GHz, up to 4.4 GHz w/Boost, 8 MB cache, 4 core, 65W) + Intel® UHD Graphics 630

Intel® Core™ i3-10320 Processor (3.8 GHz, up to 4.6 GHz w/Boost, 8 MB cache, 4 core, 65W) + Intel® UHD Graphics 630

Intel® Core™ i5-10400F Processor (2.9 GHz, up to 4.3 GHz w/Boost, 12 MB cache, 6 core, 65W)

Intel® Core™ i5-10400 Processor (2.9 GHz, up to 4.3 GHz w/Boost, 12 MB cache, 6 core, 65W) + Intel® UHD Graphics 630

Intel® Core™ i5-10500 Processor (3.1 GHz, up to 4.5 GHz w/Boost, 12 MB cache, 6 core, 65W) + Intel® UHD Graphics 630

Intel® Core™ i5-10600 Processor (3.3 GHz, up to 4.8 GHz w/Boost, 12 MB cache, 6 core, 65W) + Intel® UHD Graphics 630

Intel® Core™ i5-10600K Processor (4.1 GHz, up to 4.8 GHz w/Boost, 12 MB cache, 6 core, 125W) + Intel® UHD Graphics 630

Intel® Xeon® W-1250 Processor (3.3 GHz, up to 4.7 GHz w/Boost, 12 MB cache, 2666MHz, 6 core, 80W) +Intel® UHD Graphics P630

Intel® Core™ i7-10700 Processor (2.9 GHz, up to 4.8 GHz w/Boost, 16 MB cache, 8 core, 65W) + Intel® UHD Graphics 630

Intel® Xeon® W-1250P Processor (4.1 GHz, up to 4.8 GHz w/Boost, 12MB cache, 2666MHz, 6 core, 125W)+Intel® UHD Graphics P630

Intel® Xeon® W-1270 Processor (3.4 GHz, up to 5 GHz w/Boost, 16 MB cache, 8 core, 80W) + Intel® UHD Graphics P630

Intel® Core™ i7-10700K Processor (3.8 GHz, up to 5.1 GHz w/Boost, 16 MB cache, 8 core, 125W) + Intel® UHD Graphics 630

Intel® Core™ i9-10900F Processor (2.8 GHz, up to 5.2 GHz w/Boost, 20 MB cache, 10 core, 65W)

Intel® Core™ i9-10900 Processor (2.8 GHz, up to 5.2 GHz w/Boost, 20 MB cache, 10 core, 65W) + Intel® UHD Graphics 630

Intel® Core™ i9-10850K Processor (3.6 GHz, up to 5.2 GHz w/Boost, 20 MB cache, 10 core, 95W) + Intel® UHD Graphics 630

Intel® Xeon® W-1270P Processor (3.8 GHz, up to 5.1 GHz w/Boost, 16 MB cache, 8 core, 95W) + Intel® UHD Graphics P630

Intel® Xeon® W-1290 Processor (3.2 GHz, up to 5.2 GHz w/Boost, 20 MB cache, 10 core, 80W) + Intel® UHD Graphics P630

Intel® Xeon® W-1290P Processor (3.7 GHz, up to 5.3 GHz w/Boost, 20 MB cache, 10 core, 95W) + Intel® UHD Graphics P630

Intel® Core™ i9-10900K Processor ((3.7 GHz, up to 5.3 GHz w/Boost, 20 MB cache, 10 coire 125W) + Intel® UHD Graphics 630

ENERGY STAR

ENERGY STAR Qualified Configuration

Chassis

250 W Chassis

450 W Gold Chassis (90% Efficient)

Memory

4 GB (1 x 4 GB) DDR4-3200 UDIMM Memory

8 GB (1 x 8 GB) DDR4-3200 UDIMM Memory

8 GB (2 x 4 GB) DDR4-3200 UDIMM Memory

16 GB (1 x 16 GB) DDR4-3200 UDIMM Memory

16 GB (2 x 8 GB) DDR4-3200 UDIMM Memory

8 GB (1 x 8 GB) DDR4-3200 UDIMM ECC Memory

16 GB (1 x 16 GB) DDR4-3200 UDIMM ECC Memory

32 GB (1 x 32 GB) DDR4-3200 UDIMM Memory

32 GB (2 x 16 GB) DDR4-3200 UDIMM Memory

32 GB (4 x 8 GB) DDR4-3200 UDIMM Memory

16 GB (2 x 8 GB) DDR4-3200 UDIMM ECC Memory

24 GB (3 x 8 GB) DDR4-3200 UDIMM Memory

24 GB (3 x 8 GB) DDR4-3200 UDIMM ECC Memory

32 GB (1 x 32 GB) DDR4-3200 UDIMM ECC Memory

32 GB (2 x 16 GB) DDR4-3200 UDIMM ECC Memory

64 GB (2 x 32 GB) DDR4-3200 UDIMM Memory

64 GB (4 x 16 GB) DDR4-3200 UDIMM Memory

32 GB (4 x 8 GB) DDR4-3200 UDIMM ECC Memory

64 GB (2 x 32 GB) DDR4-3200 UDIMM ECC Memory

64 GB (4 x 16 GB) DDR4-3200 UDIMM Memory

128 GB (4 x 32 GB) DDR4-3200 UDIMM Memory

128 GB (4 x 32 GB) DDR4-3200 UDIMM ECC Memory

Internal M.2 storage

256 GB M.2 2280 PCIe NVMe TLC SSD

256 GB HP Z Turbo Drive OPAL 2 Self-Encrypted (SED) NVMe TLC SSD

256 GB HP Z Turbo Drive TLC SSD

512 GB HP Z Turbo Drive OPAL 2 Self-Encrypted (SED) NVMe TLC SSD

512 GB M.2 2280 PCIe NVMe TLC SSD

512 GB HP Z Turbo Drive TLC SSD

1 TB M.2 2280 PCIe NVMe TLC SSD

1 TB HP Z Turbo Drive TLC SSD

1 TB HP Z Turbo Drive OPAL 2 Self-Encrypted (SED) NVMe TLC SSD

2 TB PCIe NVMe TLC M.2 SSD

2 TB HP Z Turbo Drive M.2 PCIe TLC SSD

Secondary internal M.2 storage

256 GB M.2 2280 PCIe NVMe TLC 2nd SSD

256 GB HP Z Turbo Drive TLC 2nd SSD

512 GB M.2 2280 PCIe NVMe TLC 2nd SSD

512 GB HP Z Turbo Drive TLC 2nd SSD

1 TB M.2 2280 PCIe NVMe TLC 2nd SSD

1 TB HP Z Turbo Drive TLC 2nd SSD

2 TB PCIe NVMe TLC M.2 2nd SSD

2 TB HP Z Turbo Drive M.2 PCIe TLC 2nd SSD

Internal storage

1 TB 7200 RPM SATA 3.5" HDD

500 GB 7200 RPM SATA 3.5" HDD

500 GB 7200 RPM SATA OPAL 2 Self-Encrypted (SED) SFF 2.5" HDD

2 TB 7200 RPM SATA 3.5" HDD

1 TB 7200 RPM SATA 3.5" Enterprise HDD

2 TB 7200 RPM SATA Enterprise 3.5" HDD

4 TB 7200 RPM SATA 3.5" Enterprise HDD

8 TB 7200 RPM SATA Enterprise 3.5" HDD

2 TB SATA 2.5" SSD

Second internal storage

1 TB 7200 RPM SATA 3.5" 2nd HDD

500 GB 7200 RPM SATA 3.5" 2nd HDD

2 TB 7200 RPM SATA 3.5" 2nd HDD

1 TB 7200 RPM SATA 3.5" Enterprise 2nd HDD

2 TB 7200 RPM SATA Enterprise 3.5" 2nd HDD

4 TB 7200 RPM SATA 3.5" Enterprise 2nd HDD

8 TB 7200 RPM SATA Enterprise 3.5" 2nd HDD

2 TB SATA 2.5" 2nd SSD

Internal OS load storage options

Operating System Load to M.2

Operating System Load to SATA

Real-time data backup

RAID 0 Striped Array Configuration

RAID 1 Mirrored Array Configuration

Graphics card

NVIDIA® Quadro® P400 (2 GB GDDR5, 3 x Mini DisplayPort 1.4) Graphics

AMD Radeon™ Pro WX 3200 (4 GB GDDR5, 4x mini-DisplayPort, PCIe x16) Graphics

NVIDIA® Quadro® P620 (2 GB GDDR5, 4 x Mini Displayport, LP) Graphics

NVIDIA® Quadro® P1000 (4 GB GDDR5, 4 x Mini DisplayPort 1.4) Graphics

NVIDIA® T1000 (4 GB GDDR5, 4 x Mini DisplayPort, PCIe x16) Blower Fan Graphics

NVIDIA Quadro RTX 3000 6 GB GDDR6 LP 4mDP PCIe x16 Graphics

NVIDIA® Quadro® T2000 (4 GB GDDR5) MXM Graphics

Second graphics card

NVIDIA® Quadro® P400 (2 GB GDDR5, 3 x Mini DisplayPort 1.4) 2nd Graphics

AMD Radeon™ Pro WX 3200 (4 GB GDDR5, 4x mini-DisplayPort, PCIe x16) 2nd Graphics

NVIDIA® Quadro® P620 (2 GB GDDR5) 2nd Graphics

NVIDIA® Quadro® P1000 (4 GB GDDR5, 4 x Mini DisplayPort 1.4) 2nd Graphics

Additional networking options

Intel® Wi-Fi 6 AX201 (2x2) MU-MIMO + Bluetooth® 5 (no-vPro™) - 2 antenna

Intel® Ethernet Server I350-T2 2 Port 1 GB

Aquantia NBASE-T 5GbE PCIe Network Interface Card

Intel® X710-DA2 10GbE SFP+ Dual Port NIC

Intel® X550-T2 10GbE Dual Port NIC

Media reader

HP SD Card Reader

Optical drive

No included Optical Disc Drive

9.5mm DVD-ROM 1st Optical Disc Drive

9.5mm DVD-Writer 1st Optical Disc Drive

9.5mm Blu-ray R/RE DVD+/-RW SM DL Slim Tray Optical Disc Drive

9.5mm Blu-ray Writer 1st Optical Disc Drive

Keyboard

No Included Keyboard

HP USB 320K Keyboard

HP USB Business Slim Wired SmartCard CCID Keyboard

HP USB Wireless Slim Business Keyboard and Mouse

HP Premium USB Wired Keyboard

HP Premium Wireless Keyboard

Mouse

No Included Mouse

HP Wired 320M Mouse

HP Premium USB Mouse

HP Wireless Premium Mouse

Graphics connectors

No Adapters Needed

HP mini DisplayPort-to-DisplayPort Adapter

HP DisplayPort to DVI-D Adapter

HP USB-C to DP Adapter

HP mini DisplayPort-to-DisplayPort Adapter (2-pack)

USB-C to HDMI Adapter

USB-C to VGA Adapter

HP mini DisplayPort-to-DisplayPort Adapter (4-pack)

HP mini DisplayPort-to-DisplayPort Adapter (8-pack)

Label

FDA Class 1 Medical Device Label

LAN Transceivers

HP 10GbE SFP+ SR 1st Transceiver

Technical AV

Electronic TCO Certified Label

OS Localization

2.5 inch Bay Screws

Lower 3.5in Bay Screws

SATA Cable - ST-RA 1

SATA Cable - ST-RA 2

SATA Cable - ST-ST 1

HP 3.5 to 2.5 Drive Carrier

Security

HP Remove Computrace BIOS Module

HP TPM Disabled

Hood sensor optional kit

HP Solenoid Hood Lock

Accessories

Apus Chassis Stand

HP Internal Serial Port/PS/2 Ports

2nd Serial Port Adapter

HP DisplayPort to HDMI 2.0

Dust Filter Bezel

Warranty

Protected by HP, including a 3 year standard limited warranty. Optional HP Care Pack Services are extended service contracts that extend your protection beyond the standard warranties. Service levels and response times for HP Care Packs may vary depending on your geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. For details, visit www.hp.com/go/cpc

External I/O Ports

Front:1 headphone/microphone combo; 2 SuperSpeed USB Type-A 10Gbps signaling rate; 2 SuperSpeed USB Type-A 5Gbps signaling rate; 1 SuperSpeed USB Type-C® 10Gbps signaling rate
Rear:1 audio-out; 1 RJ-45; 2 USB 2.0; 2 DisplayPort™ 1.4; 2 SuperSpeed USB Type-A 5Gbps signaling rate; 2 SuperSpeed USB Type-A 10Gbps signaling rate
Internal:1 Media Card Reader

Software included

HP PC Hardware Diagnostics UEFI; HP Performance Advisor; HP Support Assistant; HP PC Hardware Diagnostics Windows; ZCentral Remote Boost; HP Image Assistant; HP Manageability Integration Kit

Weight

Starting at 11.9 lb

Dimensions (W X D X H)

13.3 x 12.1 x 3.95 in

Xem thêm

Attribute name	Attribute value
Processor	Intel Core i
Form factor	SFF
