HPE ProLiant DL380 Gen10 Server

Adaptable for diverse workloads and environments, the secure 2P 2U HPE ProLiant DL380 Gen10 delivers world-class performance with the right balance of expandability and scalability. Designed for supreme versatility and resiliency while being backed by a comprehensive warranty make it ideal for multiple environments from Containers to Cloud to Big Data. Standardize on the industry’s most trusted compute platform.

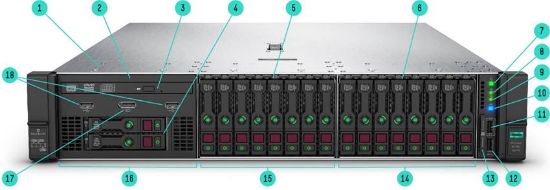

Front View – SFF chassis with optional Universal Media bay with optical and 2 NVME plus 16 NVMe shown

1.

Quick removal access panel

10.

UID button

2.

Optional Universal Media bay. 2 USB 2.0 and Display port standard (8 SFF bay or 6 SFF+2NVMe or 8NVMe optional)

11.

iLO Front Service Port

3.

Optional Optical drive. Requires Universal Media bay

12.

USB 3.0

4.

Optional 2 SFF HDD, requires optional Universal Media bay

13.

Serial label pull tag

5.

Drive Bay 2. NVMe shown

(8 SFF, 6SFF+2NVMe or 8 NVMe PCIe SSD optional)

14.

Box 3

6.

8 SFF Drive Cage Bay

15.

Box 2

7.

Power On/Standby button and system power LED button

16.

Box 1

8.

Health LED

17.

Optional front display port (Via Universal Media Bay)

9.

NIC status

18.

Optional USB 2.0 (via Universal Media Bay)

Front View – 8LFF chassis with Universal media bay and optional 2SFF and optical drive shown

1.

UID button

6.

iLO Front Service Port

2.

Health LED

7.

Serial label pull tag

3.

NIC status

8.

Optional optical drive shown (blank as standard)

4.

Power On/Standby button and system power LED button

9.

Optional 2 SFF Drive bay, 2 NVMe shown

5.

Front display port

Internal View 8SFF chassis – with optional 2^nd CPU, FlexLOM, Smart array shown

1.

Fan cage shown with 6 standard Hot-plug fans (High Performance temperature fans optional)

9..

(Under) Hot Plug redundant HPE Flexible Slot Power supplies

2.

2 Processors, heatsink showing

10.

Connection for second (optional) riser (Requires second CPU)

3.

Optional HPE Smart Hybrid Capacitor or HPE Smart Storage Battery

11.

Embedded 4x1Gbe NIC (if equipped)¹

4.

DDR4 DIMM slots. Shown fully populated in 24 slots (12 per processor)

12.

Primary PCIe riser, standard (Optional double wide GPU riser)

5.

MicroSD card slot (Optional Dual Micro-SD option)

13.

FlexibleLOM slot (Optional, depending on model selected)

6.

Internal USB 3.0 connector

14.

X4 SATA ports (1, 2 and 3)

7.

Chassis intrusion detection connector

15.

Clear air baffle

8.

Optional HPE Smart Array (P408i-a shown)Clear air baffle

Notes: ¹ Networking Choice (NC) models do not include an embedded NIC and have a FlexibleLOM pre-selected for Build-to-Order (BTO) models; Configure-to-Order (CTO) models require a primary networking choice of FlexibleLOM or select networking adapters NIC adapters. See "FlexibleLOM Adapters" and/or "HPE Networking" sections for available options.

Rear View – With optional FlexLOM, Rear drives and Serial port shown.

1.

Primary Riser. PCI Slots (Slots 1-3 top to bottom, riser shipped standard, not shown), optional 2SFF rear drives

9.

Power supply Power LED

2.

Secondary Riser. PCI Slots (Slots 4-6top to bottom, not shown, requires second riser card, and second processor). Showing optional 2 SFF rear

10.

HPE Flexible Slot Power Supply bay 2 (800W shown)

3.

Optional serial port

11.

VGA connector

4.

Tertiary Riser (Slots 7-8). Optional rear 2 SFF HDD (supported in 24 SFF or 12 LFF front end)

12.

Embedded 4 x 1GbE Network Adapter (if equipped) ¹

5.

Power supply Power connection

13.

Dedicated iLO management port

6.

Power supply Power LED

14.

USB connectors 3.0 (2)

7.

HPE Flexible Slot Power Supply bay 1 (800W shown)

15.

Unit ID LED

8.

Power supply Power connection

16.

FlexibleLOM ports (4 x 1GbE shown); optional, depending on model

Notes: ¹ Networking Choice (NC) models do not include an embedded NIC and have a FlexibleLOM pre-selected for Build-to-Order (BTO) models; Configure-to-Order (CTO) models require a primary networking choice of FlexibleLOM or select networking adapters NIC adapters. See "FlexibleLOM Adapters" and/or "HPE Networking" sections for available options.

What’s New

· New Read-Intensive SFF Value SAS SSD (960GB/1.92TB/3.84TB/7.68TB)

· New Mixed-Use SFF Value SAS SSD (960GB/1.92TB/3.84TB)

· New Mixed-Use LFF Value SAS SSD (1.92TB)

· New HPE 32GB 1Rx4 DDR4-2933 Registered Memory Kit (P38466-B21)

· New HPE Trusted Supply Chain/HPE ProLiant DL380T Gen10 option (P36394-B21)

Platform Information

Form Factor

· 2U rack

Chassis Types

· 8 SFF with optional Universal Media Bay, and optional SFF or NVMe drive bay options

· 24 SFF bay with additional 6SFF rear drive bay option to total 30 SFF drives

· 8 LFF with Universal Media Bay

· 12 LFF with optional 4 LFF mid-plane and optional 3LFF + 2 SFF rear drive bay to total 19 LFF drives + 2 SFF drives

Notes:

­  The 3 LFF rear drive box will consume space for the secondary and tertiary riser.

­  The 8 and 12 LFF chassis also supports the 2 SFF rear drive box which allows for the user to attach a secondary or tertiary riser.

­  The 8 NVMe drive option (826689-B21) can only be leveraged in the SFF chassis and replaces Box 1, 2 or 3, however there is a maximum of 20 NVMe drives supported with Partial population of Box 1.

­  The Premium cage (826690-B21, 6 SAS/SATA+2 NVMe) can only be leveraged in the SFF chassis and replaces Box 1, 2 or 3.

­  The Universal Media Bay (826708-B21) not available with the LFF chassis or the 24 SFF front end, and can only be populated in Box 1.

­  The 8 SFF can be upgraded with additional 8SFF drive box to total 16 or 24 SFF drives. For optimal upgrade Box 2 should be populated second, with Box 1 the last to be populated for a field upgrade to 24 SFF. For CTO builds requiring 24 SFF please use the 24 SFF chassis (868704-B21). Note a field upgrade to 24 SFF will require a High Performance fan kit (867810-B21).

­  The 8 LFF chassis cannot be upgraded to 12 LFF front in the field; however the 4-LFF Mid plane (826686-B21) is supported, but will also require a performance fan kit (867810-B21).

­  The 8LFF chassis ships with 6-standard fans.

­  All models come with the S100i Smart Array Controller with embedded software RAID support for 12 drives. The S100i uses 14 embedded SATA ports, but only 12 ports are accessible as 2 are leveraged to support the 2 M.2 options on the primary riser.

System Fans

· Standard – fan types included

Notes:

- 1P models typically ship with 4 standard fans. The second processor option kit contains 2 additional fans. 1P Models have (4) (N+1 redundancy standard).

- 2P models typically ship with 6 standard fans. 2P Models have (6) (N+1 redundancy standard).

- The 12 LFF and 24 SFF chassis ship with 6 High performance fans as standard.

- The 8LFF chassis ships with 6 standard fans as standard.

- High performance fan kit is available to meet ambient temperature environments.

- High performance fan kits are required for rear drives, Graphics (GPU) card or NVMe configurations.

Processors – Up to 2 of the following depending on model.

The 2nd digit of the processor model number "x1xx" and "x2xx" is used to denote the processor generation (i.e. 1=1st generation and 2=2nd generation)

Notes: Field upgrades from 1^st generation processors (x1xx) to 2^nd generation processors (x2xx) not supported.

"U" processors (i.e. 6212U) only supported in single socket configurations

For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.

This table covers the public Intel offering only.

Notes: More than 1.5 TB memory per socket requires memory higher than 128 GB capacity

Notes:

­ Platinum – 8200 Series – 2 Socket supports supports 6-Channel DDR4 @ 2933 MT/s providing up to 1TB memory capacity per socket (up to 2TB/socket on M series and up to 4.5TB/socket on L series); Intel Optane Persistent Memory for HPE (select skus), Vector Neural Network Instructions (VNNI) for inference acceleration, Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2x 512-bit FMA). 48 lanes PCIe 3.0, advanced RAS

­  Processors with 130W TDP or higher and the 8256, 8156, 6128, 5222, and 5122 will ship with the High Performance heatsink. All other will processors will ship with the Standard heatsink.

Notes:

­  Platinum – 8100 Series –2 Socket supports 2UPI, supports 6-Channel DDR4 @ 2666 MT/s providing up to 768GB memory capacity (1.5 TB on select processor skus). Intel Turbo Boost Technology, Intel Hyper-Threading Technology supported. Intel AVX-512 (2x 512-bit FMA), 48 lanes PCIe 3.0, advanced RAS.

­  Processors with 130W TDP or higher and the 8256, 8156, 6128, 5222, and 5122 will ship with the High Performance heatsink. All other will processors will ship with the Standard heatsink.

Notes:

­  ¹ Gold Processor 5222 supports 2933 DDR4 and 2 512-bit FMA units

­  ² Gold Processor 5218B has consistent features with the 5218 processor but is from a different die. Mixing both 5218B & 5218 in a system is not supported

­  ³ Gold Processor 5218N processor available April 2019, Intel® Speed Select Technology-Base Frequency enablement via System ROM upgrade targeting June 2019

­  Processors with 130W TDP or higher and the 8256, 8156, 6128, 5222, and 5122 will ship with the High Performance heatsink. All other processors will ship with the Standard heatsink.

­  ⁴ Configuration support and facilities-requirements matrix for Gold Processor 6256 and Gold Processor 6250 listed below:

Notes: ¹Must install DDR4 DIMM blanks (P07818-B21) on all empty DIMM slots

Notes:

­ Gold - 6200 & 5200 Series - 6-Channel DDR4 @ 2933 MT/s (6200 & 5222 skus only)  or 2666 MT/s (all Gold 5200 skus except 5222 @ 2933 MT/s); providing up to 1TB memory capacity per socket (up to 2TB/socket on M series and up to 4.5TB/socket on L series); Support for Intel Optane Persistent Memory for HPE (select skus), Vector Neural Network Instructions (VNNI) for inference acceleration.

­  Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2x 512-bit FMA for 6200 series and 5222; 1 x 512-bit FMA for 5200 series, except for 5222) 48 lanes PCIe 3.0, advanced RAS

­  Gold – 5100, 6100 Series - 2 Socket supports 2UPI, supports 6-Channel DDR4 @ 2400 MHz (SKU 5122=supports 2666) providing up to 768GB memory capacity (1.5 TB on select skus).  Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA)  (SKU 5122 supports 2x 512 bit FMA), 48 lanes PCIe 3.0, advanced RAS supported.

­  Processors with 130W TDP or higher and the 8256, 8156, 6128, 5222, and 5122 will ship with the High Performance heatsink. All other will processors will ship with the Standard heatsink.

Notes: ⁴  Silver Processors 4215R and 4215 support Intel Optane Persistent Memory for HPE

Notes:

­  Silver – 4200 Series - 6-Channel DDR4 @ 2400 MT/s, providing up to 1TB memory capacity per socket; Support for: Intel® Vector Neural Network Instructions (VNNI) for inference acceleration; Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (1x 512-bit FMA).48 lanes PCIe 3.0, standard RAS

­  Silver – 4100 Series - 2 Socket supports 2UPI @ 9.6 GT/s, 6-Channel DDR4 @ 2400 MHz providing up to 768 GB memory capacity. Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported.

Notes: Bronze – 3200 Series - 6-Channel DDR4 @ 2133 MT/s, providing up to 1TB memory capacity per socket; Support for: Intel® Vector Neural Network Instructions (VNNI) for inference acceleration; Intel AVX-512 (1x 512-bit FMA); 48 lanes PCIe 3.0, standard RAS

Notes: Bronze – 3100 Series - 2 Socket supports 2UPI @ 9.6 GT/s, supports 6-Channel DDR4 @ 2133 MHz providing up to 768GB memory capacity. Intel AVX-512(1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported.

Chipset

Intel C621 Chipset

For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/

On System Management Chipset

HPE iLO 5 ASIC

Read and learn more in the iLO QuickSpecs.

Memory

One of the following depending on model.

Notes:

­  Intel Optane Persistent Memory for HPE only supported with select 2nd generation Intel Xeon Scalable Series Processors ONLY (82xx/62xx/52xx/4215R/4215)  and can only be mixed with either RDIMMs or LRDIMMs.

­  HPE NVDIMMs are only supported on 1st generation Intel Xeon Scalable Series Processors and can only be mixed with RDIMMs.

­  Maximum memory per socket is dependent on processor selection. 2^nd generation processors supporting 2 TB or 4.5 TB per CPU are indicated by the "M" and "L" in the processor model names (i.e. 8276M and 8276L). 1^st generation processors supporting 1.5 TB per CPU are indicated by the "M" in the processor model names (ie 8160M)

­  Maximum memory per socket is dependent on processor selection. Processors supporting 1.5 TB per CPU is indicated by the "M" in the processor model names (i.e. 8160M).

­  Mixing of RDIMM and LRDIMM memory is not supported.

­  For General Server Memory and HPE NVDIMM Population Rules and Guidelines for Gen10 see details here:

http://www.hpe.com/docs/memory-population-rules

­  For details on the HPE Server Memory speed, visit: https://www.hpe.com/docs/memory-speed-table

­  To realize the performance memory capabilities listed in this document, HPE DDR4 SmartMemory is required.

­  For additional information, please see the HPE DDR4 SmartMemory QuickSpecs.

Memory Protection

For details on the HPE Server Memory Options RAS feature, visit: http://www.hpe.com/docs/memory-ras-feature

Expansion Slots

Notes:

­  Bus Width Indicates the number of physical electrical lanes running to the connector.

­  The specifications above correspond with the default primary riser which also supports dual m.2 cards. Additional Primary Riser options and specifications noted in the "Riser Information" table within this document.

Notes:

­  Bus Width Indicates the number of physical electrical lanes running to the connector.

­  The Secondary Riser requires Processor 2 to be populated 870548-B21

­  The specifications above correspond with the x8/x16/x8 Secondary Riser Kit (870548-B21). Additional Secondary Riser options and specifications noted in the "Riser Information" table within this document.

Notes:

­  Bus Width Indicates the number of physical electrical lanes running to the connector.

­  The Tertiary Riser requires Processor 2 to be populated

­  The specifications above correspond with the 2x8 Tertiary Riser Kit (875780-B21). Additional Tertiary Riser options and specifications noted in the "Riser Information" table within this document

Graphics

Integrated Video Standard

· Video modes up to 1920 x 1200@60Hz (32 bpp)

· 16MB Video Memory

HPE iLO 5 on system management memory

· 32 MB Flash

· 4 Gbit DDR 3 with ECC protection

Maximum Internal Storage

Notes:

­  2x m.2 drives are supported on the Primary Riser.

­  UFF drives are also supported.

Internal Storage Devices

One of the following depending on model

· Optical Drive

Ships standard in Performance Models

Optional: DVD-ROM, DVD-RW

· Hard Drives

None ship standard

Power Supply

· HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes: Available in 94% efficiency.

· HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes:

­  Available in 94% and 96% efficiency.

­  Also available in -48VDC and 227VAC/380VDC power inputs.

· HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes:

­  Available in 94% efficiency.

­  Also available in -48VDC

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page. o review the power requirements for your selected system, please use the HPE Power Advisor Tool.

For information on power specifications and technical content visit HPE Server power supplies.

Storage Controllers

The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed breakout of the available Gen10 Smart Array controllers visit the HPE Smart Array Gen10 Controllers Data Sheet.

One of the following depending on model

Software RAID

· HPE Smart Array S100i SR Gen10 SW RAID

Notes:

­ HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional controller will be needed, and for CTO orders please also select the Legacy mode settings part, 758959-B22.

­ HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled.

­ The S100i uses 14 embedded SATA ports, but only 12 ports are accessible as 2 are leveraged to support the 2 M.2 options on the primary riser. If more than 8 SATA devices are being supported on this controller, then a Qty=1 of the SAS 3POS Cable Kit (826709-B21) is required.

­ The S100i supports Windows only

­ For Linux users, HPE offers a solution that uses in-distro open-source software to create a two-disk RAID 1 boot volume. For more information visit: https://downloads.linux.hpe.com/SDR/project/lsrrb/

Essential RAID Controller

· HPE Smart Array E208i-a SR Gen10 Controller

· HPE Smart Array E208i-p SR Gen10 Controller

· HPE Smart Array E208e-p SR Gen10 Controller

Performance RAID Controller

· HPE Smart Array P408i-a SR Gen10 Controller

· HPE Smart Array P408i-p SR Gen10 Controller

· HPE Smart Array P408e-p SR Gen10 Controller

· HPE Smart Array P816i-a SR Gen10 Controller

Notes:

­  Performance RAID Controllers require the HPE Smart Hybrid Capacitor (P02377-B21) or the HPE Smart Storage Battery (P01366-B21) which are sold separately.

­  For additional details, please see HPE Smart Array Gen10 Controllers Data Sheet.

Interfaces

Operating Systems and Virtualization Software Support for ProLiant Servers

2^nd Generation Intel® Xeon® Scalable Processor Family

· Windows Server 2019: Essentials, Standard, Datacenter

· Windows Server 2016: Essentials, Standard, Datacenter

· Windows Server 2012 R2: Essentials, Standard, Datacenter

· Microsoft Hyper-V Server: 2012 R2, 2016 & 2019

· VMware vSphere 6.0 U3, 6.5 U2 through U.3 & 6.7 U1 through U3, 7.0

Notes: 6.5 U3, 6.7 U3 & 7.0  minimums for Xeon "R", Gold 6256, Gold 6250L & Gold 6250 processors.

· ClearOS: 7.6; ClearVM: 2.0

· Red Hat Enterprise Linux (RHEL) 7.6 w/ Kbase**, 8.0

· SUSE Linux Enterprise Server (SLES) 12 SP3, 15 (includes Xen) **

Notes:

- SLES12 SP4 is the minimum for servers featuring Intel® Optane™ DC Persistent Memory.

- Ubuntu: 18.04 LTS (4.15.0)

- Oracle Linux: Oracle Linux 7.6 UEK Release 5 Update 2; Oracle VM 3.4.6 (UEK Release 4 Update 7)

- Citrix: Hypervisor: 8,0, 8.1, 8.2; XenServer 7.1, 7.4, 7.5, 7.6

1st Generation Intel® Xeon® Scalable Processor Family

· Windows Server 2019: Essentials, Standard & Datacenter

· Windows Server 2016 : Essentials, Standard & Datacenter

· Windows Server 2012 R2: Essentials, Standard & Datacenter

· Micrsoft Hyper-V Server: 2012 R2, 2016 & 2019

· VMware vSphere 6.0 U3, 6.5 through U.3 & 6.7 through U3, 7.0

· ClearOS: 7.6; ClearVM: 2.0

· Red Hat Enterprise Linux (RHEL) 6.9, 7.3 **

· SUSE Linux Enterprise Server (SLES) 11 SP4, 12 SP2 & 15 (includes Xen) **

· Ubuntu: 16.04.3 HWE (4.10), 18.04 LTS (4.15.0)

· Oracle Linux: Oracle Linux/UEK 6.9, 7.4; Oracle VM 3.4.4

· Citrix: Hypervisor: 8,0, 8.1, 8.2; XenServer 7.1, 7.4, 7.5, 7.6

Notes:

- For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server http://www.hpe.com/info/ossupport

- ** 64-bit only;includes KVM

HPE Server UEFI/Legacy ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen10 servers have a UEFI Class 2 implementation and support both UEFI Mode (default) and Legacy BIOS Mode.

Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi.

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

· Secure Boot and Secure Start enable for enhanced security

· Embedded UEFI Shell

· Operating system specific functionality

· Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant

· Support for > 2.2 TB (using GPT) boot drives

· PXE boot support for IPv6 networks

· USB 3.0 Stack

· Workload Profiles for simple performance optimization

UEFI Boot Mode only:

· TPM 2.0 Support

· iSCSI Software Initiator Support.

· NVMe Boot Support

· HTTP/HTTPs Boot support as a PXE alternative.

· Platform Trust Technology (PTT) can be enabled.

· Boot support for option cards that only support a UEFI option ROM

Notes:

­  For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

­  UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory for your HPE ProLiant Gen10 Server.

Industry Standard Compliance

· ACPI 6.1 Compliant

· PCIe 3.0 Compliant

· WOL Support

· Microsoft® Logo certifications

· PXE Support

· VGA/Display Port

Notes: This support is on the optional Universal Media Bay.

· USB 3.0 Compliant (internal)

· USB 2.0 Compliant (external ports via SUV)

Notes: This support is on the optional Universal Media Bay.

· Energy Star

· SMBIOS 3.1

· Redfish API

· IPMI 2.0

· Secure Digital 4.0

· TPM 1.20 and 2.0 Support

· Advanced Encryption Standard (AES)

· Triple Data Encrytion Standard (3DES)

· SNMP v3

· TLS 1.2

· DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)

· Active Directory v1.0

· ASHRAE A3/A4

Notes: For additional technical, thermal details regarding ambient temperature, humidity, and feature support, please visit http://www.hpe.com/servers/ashrae

· EU Lot9

Notes: European Union (EU) eco-design regulations for server and storage products, known as Lot 9, go into effect on March 1st, 2020. Among other requirements, for servers this directive establishes power thresholds for idle state, as well as efficiency and performance in active state which vary among configurations. HPE ProLiant Gen10 servers are compliant with Lot9 requirements.

Please visit: https://www.hpe.com/us/en/about/environment/msds-specs-more.html for more information regarding HPE Lot 9 conformance.

· UEFI (Unified Extensible Firmware Interface Forum) 2.6

Notes: UEFI is the default for the DL380 Gen10. Legacy mode can be selected in the field or as a CTO option (758959-B22); some configuration restrictions apply.

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo.

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

Learn more at http://www.hpe.com/servers/uefi.

Intelligent Provisioning

Hassle free server and OS provisioning for 1 or more servers with Intelligent Provisioning.

Learn more at http://www.hpe.com/servers/intelligentprovisioning..

iLO RESTful API

iLO RESTful API is Redfish API conformance and offers  simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers.  Learn more at http://www.hpe.com/servers/ahs.

Active Health System Viewer

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations, to learn more visit: http://www.hpe.com/servers/ahsv.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP).

iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers at unmatched speed and scale.  Use with an iLO Advanced License to unlock full capabilities.

Learn more at http://www.hpe.com/servers/iLOamplifierpack.

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp.

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.

Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell.

HPE OneView Standard

HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. It can monitor multiple HPE server generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available. Learn more at http://www.hpe.com/info/oneview.

HPE Systems Insight Manager (HPE SIM)

Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers. Also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates.  Learn more at http://www.hpe.com/info/hpesim.

Security

· UEFI Secure Boot and Secure Start support

· Tamper-free updates – components digitally signed and verified

· Immutable Silicon Root of Trust

· Ability to rollback firmware

· FIPS 140-2 validation

· Secure erase of NAND/User data

· Common Criteria certification

· TPM (Trusted Platform Module) 1.2 option

· Configurable for PCI DSS compliance

· TPM (Trusted Platform Module) 2.0 option

· Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser

· Bezel Locking Kit option

· Support for Commercial National Security Algorithms (CNSA)

· Chassis Intrusion detection option

· Secure Recovery – recover critical firmware to known good state on detection of compromised firmware

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:

http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/.

Server Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.

HPE OneView Advanced

HPE OneView brings a new level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured licenses which can be purchased for managing Gen8, Gen9 and Gen10 servers.

To learn more visit http://www.hpe.com/info/oneview.

HPE InfoSight for Servers

HPE InfoSight for Servers combines the cloud-based machine learning of InfoSight with the health and performance monitoring of Active Health System (AHS) and iLO to optimize performance and predict and prevent problems. The end result is an intelligent environment that modernizes IT operations and enhances the support experience by predicting and preventing the infrastructure issues that lead to application disruptions, wasted IT staff time and missed business opportunities.

Learn more at https://www.hpe.com/servers/infosight

HPE Insight Cluster Management Utility (CMU)

HPE Insight Cluster Management Utility is a HyperScale management framework that includes software for the centralized provisioning, management and monitoring of nodes and infrastructure. Learn more at http://www.hpe.com/info/cmu.

Accelerator and GPGPU Information

Hewlett Packard Enterprise supports various accelerators on select HPE Proliant servers to support different workloads. The accelerators enable seamless integration of GPU computing with HPE ProLiant servers for high-performance computing, large data center graphics, deep learning and virtual desktop deployments. These accelerators deliver all of the standard benefits of GPU computing while enabling maximum reliability and tight integration with system monitoring and management tools such as HPE Insight Cluster Management Utility.

One Config Simple (SCE)

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. https://h22174.www2.hpe.com/SimplifiedConfig/Welcome#

Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go – and business grow. We’ve reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we’ve created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today’s modern data center with enhanced airflow and thermal management, flexible cable management, and a 10 year Warranty to support higher density computing.

HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°C, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments.

HPE Uninterruptible Power Systems are cost-effective power protection for any type workload. Some UPSs include options for remote management and extended runtime modules so you’re critical dense data center is covered in power outages.

HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We’ve got a cost-effective KVM switch for your first rack and multiple connection IP switches with remote management and security capabilities to keep your data center rack up and running.

Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure.

HPE Pointnext - Service and Support

Get the most from your HPE Products. Get the expertise you need at every step of your IT journey with HPE Pointnext Services. We help you lower your risks and overall costs using automation and methodologies that have been tested and refined by HPE experts through thousands of deployments globally. HPE Pointnext Advisory Services, focus on your business outcomes and goals, partnering with you to design your transformation and build a roadmap tuned to your unique challenges. Our Professional and Operational Services can be leveraged to speed up time-to-production, boost performance and accelerate your business. HPE Pointnext specializes in flawless and on-time implementation, on-budget execution, and creative configurations that get the most out of software and hardware alike

Consume IT on your terms

HPE GreenLake brings the cloud experience directly to your apps and data wherever they are—the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake accelerates digital transformation in a distributed, edge-to-cloud world.

• Get Faster time to market
• Save on TCO, align costs to business
• Scale quickly, meet unpredictable demand
• Simplify IT operations across your data centers and clouds

Recommended Services

HPE Pointnext Tech Care

HPE Pointnext Tech Care is the new operational service experience for HPE products. Tech Care goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Pointext Tech Care has been reimagined from the ground up to support a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Pointnext Tech Care is available in three response levels. Basic, which provides 9x5 business hour availability and a 2 hour response time. Essential which provides a 15 minute response time 24x7 for most enterprise level customers, and Critical which includes a 6 hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/h20195/v2/Getdocument.aspx?docname=a00108652enw

HPE Datacenter Care

HPE Datacenter Care helps customers address the pressing needs of IT today and smoothly transform to a more agile cloud-like IT operations model. We help run and monitor your IT by offloading the day to day routine tasks, helping customers be more predictive and proactive, and saving time with one place to call with for all of their IT.

Partner with an assigned account team backed by local and global experts, access HPE enhanced call experience with priority access, use specialized support for complex, technologies, choose hardware and software support for your devices, implement proactive monitoring to stay ahead of issues , and access HPE IT best practices and IP. HPE Datacenter Care advantage options are available to add to your agreement to give you specialized expertise for performance, security, back up analysis, and much more. Datacenter Care is available as both tailored statement of work and as a packaged service for 3, 4, and 5 year terms.

https://www.hpe.com/us/en/services/datacenter-hybrid-services.html

Other related Services

HPE Server Hardware Installation

Provides for the basic hardware installation of HPE branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.
